Download Free Cisco 300-510 Exam Questions & Answer

Online VALID 300-510 Exam Dumps File Instantly

QUESTION 85

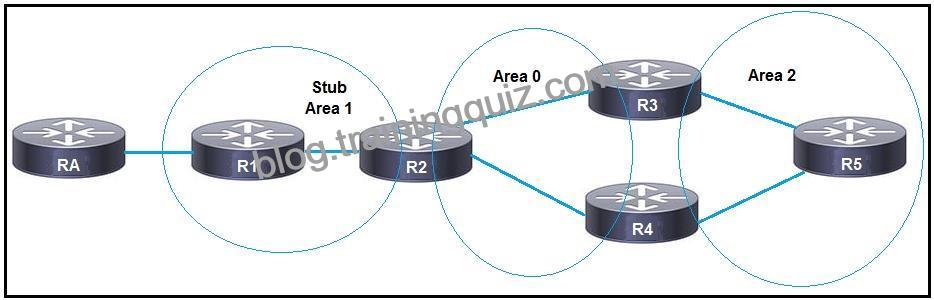

Refer to the exhibit. OSPF is running in the core of a company. Router RA is running EIGRP.
After the company acquired an additional office, an engineering team connected the two networks from router RA to router R1. OSPF and EIGRP have been mutually redistributed on R1, but the team cannot view the routes on R3. Which action must the team take to resolve the issue?

Redistribute connected routes on R3.

Configure the routers in Area 2 to be in Area 0.

Create a virtual link between R1 and R2.

Disable stub routing in Area 1.

QUESTION 86
Refer to the exhibit.

A network operator is troubleshooting TE tunnels and discovers that the soft preemption is not working as desired. Where should the soft preemption be applied to solve the issue?

on the tail-end device for tunnel-te1 192.168.0.7

under the tunnel-te1 interface on PE1

explicitly for tunnel-te 1 under the Cisco MPLS TE configuration mode after the timeout setting

Under the interface Loopback0 necessary for this deployment type.

QUESTION 87
You have configured MSDP peering between two autonomous systems that pass traffic between two sites, but the peering has failed to come up.
Which task do you perform to begin troubleshooting the problem?

Verify that multicast has been disabled globally

Verify that PIM-DM is configured on the source interface

Verify that both source interfaces are reachable from both peers

Verify that the two MSDP peers allow asymmetric routing

QUESTION 88
Refer to the exhibit.

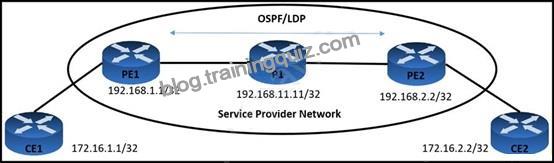

VPN users that are connected to PE routers are facing network issues. Traffic that originates from CE1 drops before reaching CE2. An engineer finds no outgoing traffic statistics on PE1 and PE2 routers toward CE devices and finds that the PE1 router is running the older software image. Which action must be implemented to resolve the issues?

Enable LDP protocol on PE1 and PE2 routers.

Advertise P1 router loopback on PE1 in OSPF.

Enable CEF-based forwarding on PE1 router.

Advertise PE2 router loopback on PE1 in OSPF.

QUESTION 89
Refer to the exhibit. XR1 and XR2 are sending the prefix 10.11.11.0/24 to XR3.
A configured policy on XR1 is incorrectly prepending AS path 11 11 12 12 onto this prefix.
A network operator wants to add a policy onto XR3 that will not allow the falsely prepending prefix from being installed.

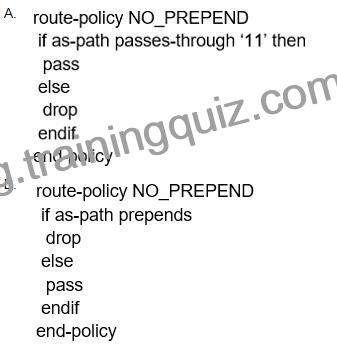

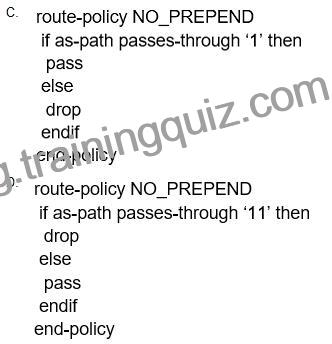

Which policy configuration applied to the XR3 neighbor configuration for XR1 can accomplish this requirement without impact to other or future received routes?

Option A

Option B

Option C

Option D

QUESTION 90

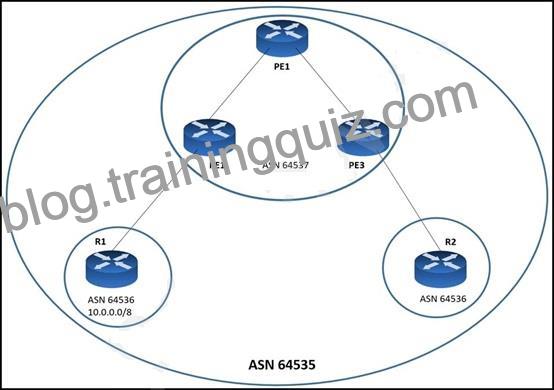

Refer to the exhibit.

A network engineer has divided AS into confederations. Due to repeated ASN, when the 10.0 0.0/8 prefix from R1 arrives to R2, BGP automatically rejects it. What should the engineer do to fix the problem so that BGP allows that prefix on R2?

Configure the command as-override on R1.

Configure the command allowas-in on R2.

Configure the command allowas-in on all the PE routers.

Configure the command as-override on R2.

QUESTION 91

Refer to the exhibit. Which effect of this configuration is true?

It sets the keepalive timer to 30 seconds and the hold timer to 240 seconds.

It sets the keepalive timer to 30 milliseconds and the hold timer to 240 milliseconds

It sets the hold timer to 30 milliseconds and the keepalive timer to 240 milliseconds

It sets the hold timer to 30 seconds and the keepalive timer to 240 seconds

QUESTION 92

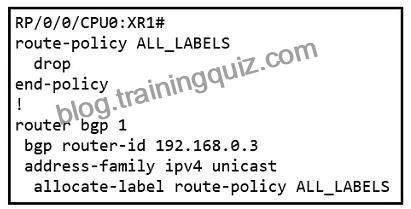

Refer to the exhibit.

A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?

Remove the allocate-labels command.

Reconfigure the route-policy ALL_LABELS to match all after the drop.

Reconfigure the route-policy ALL_LABELS to pass.

Remove the route policy and only configure “allocate-label”.

QUESTION 93

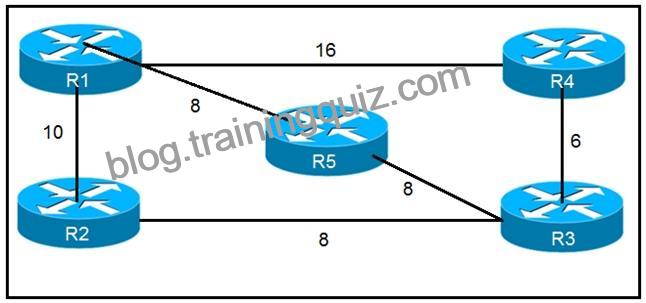

Refer to the exhibit

Which router does R1 install as an alternate next hop when trying to reach R3 if LFA is enabled?

QUESTION 94

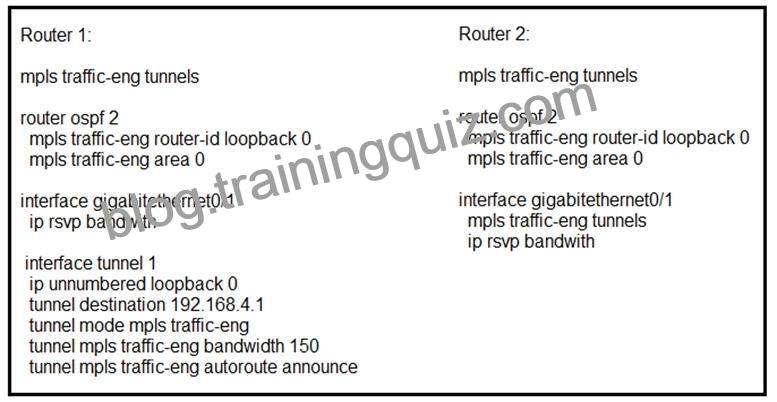

Refer to the exhibit. Router 1 has attempted to establish a Cisco MPLS TE tunnel to router 2, but the tunnel has failed.
Which statement about this configuration is true?

Router 1 must define an explicit path to router 2

Router 1 and router 2 must define the RSVP bandwidth reserved on the physical interfaces

Router 2 must have a tunnel interface created with router 1 as the destination

Router 1 must have Cisco MPLS TE enabled on interface gigabitethernet0/1

QUESTION 95
SIMULATION
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
– Refer to the Tasks tab to view the tasks for this lab item.
– Refer to the Topology tab to access the device console(s) and perform the tasks.
– Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
– All necessary preconfigurations have been applied.
– Do not change the enable password or hostname for any device.
– Save your configurations to NVRAM before moving to the next item.
– Click Next at the bottom of the screen to submit this lab and move to the next question.
– When Next is clicked, the lab closes and cannot be reopened.

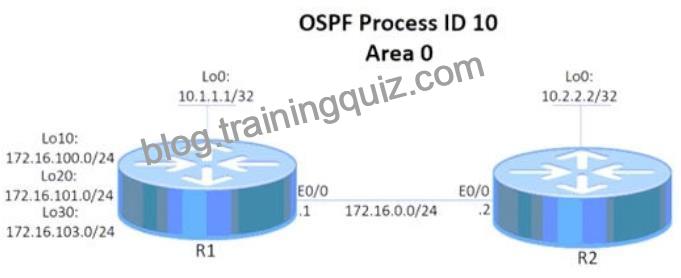

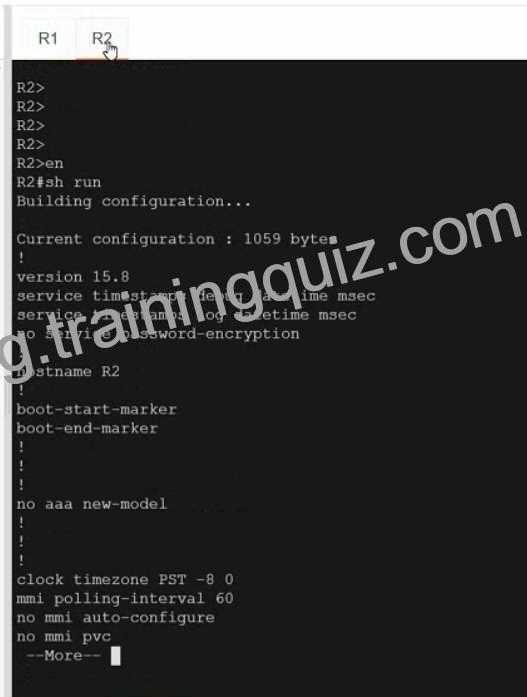

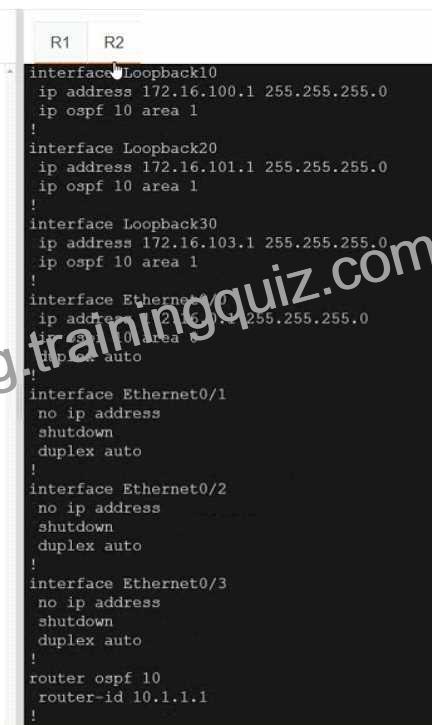

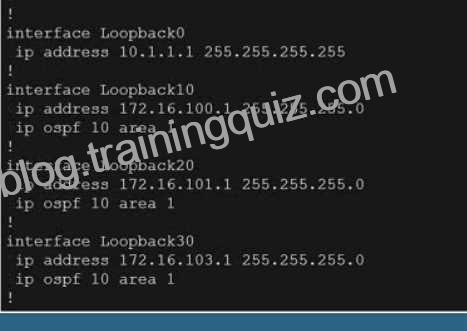

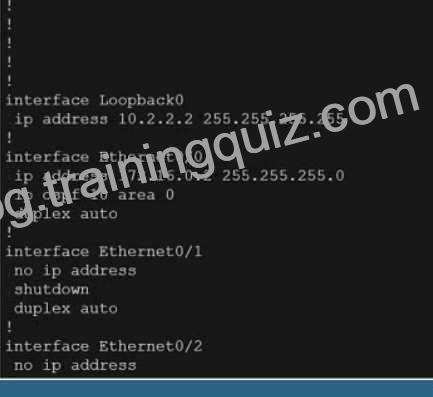

Topology

Tasks

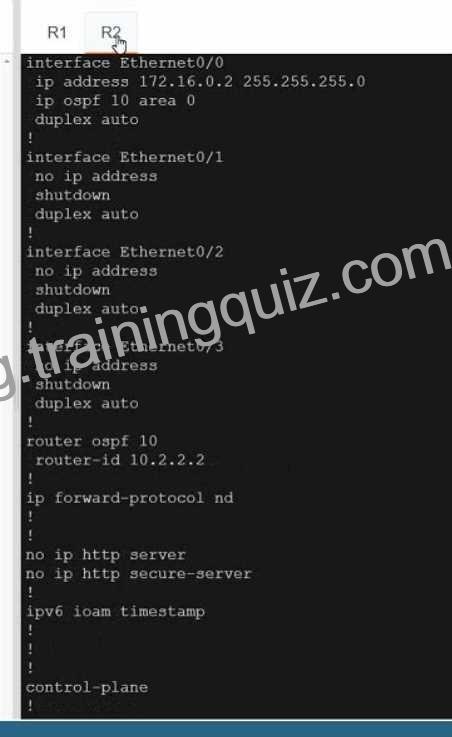

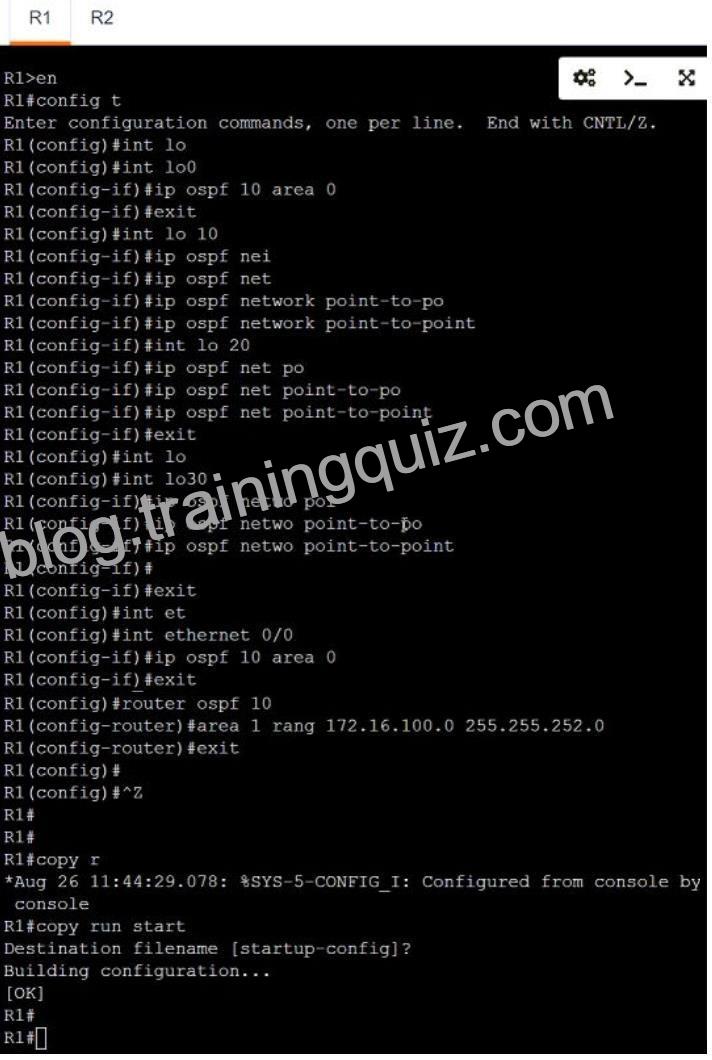

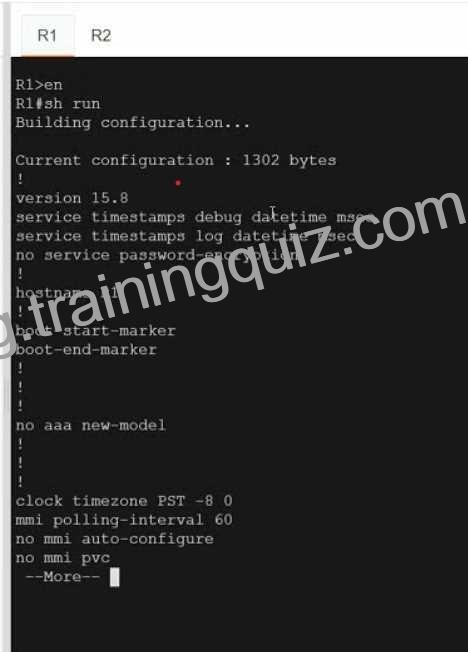

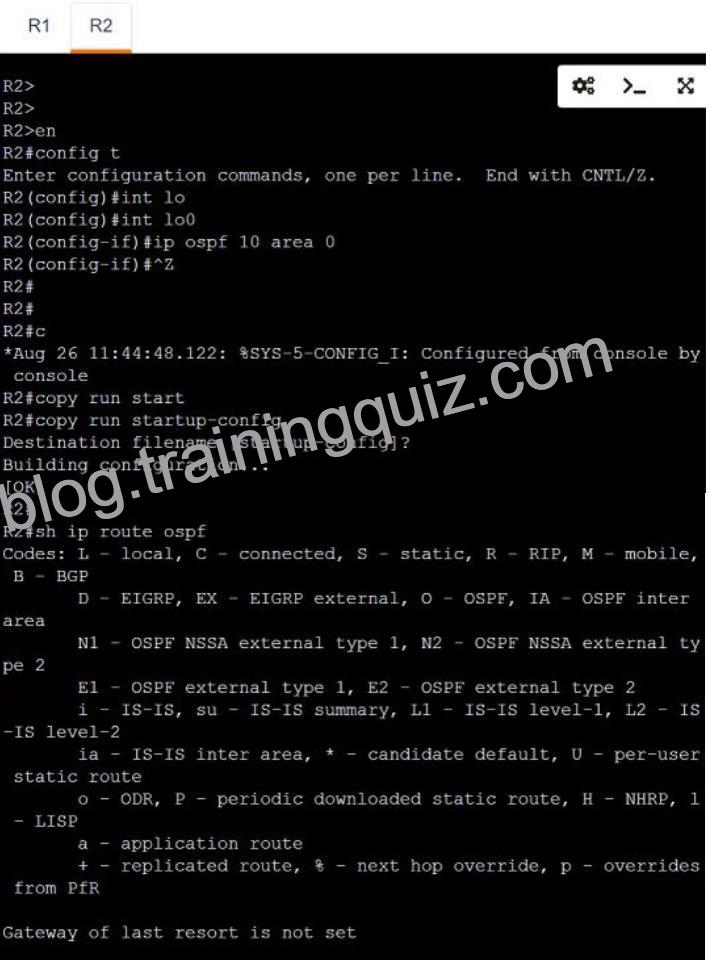

Configure and verify an OSPF neighbor adjacency between R1 and R2 in OSPF area 0 according to the topology to achieve these goals:
1. R1 pings the Loopback0 interface of R2. Use interface-level configuration to complete this task.
2. R2 pings the Loopback0 interface of R1. Use interface-level configuration to complete this task.
3. R2 receives a single summary route 172.16.100.0/22 for networks 172.16.100.0/24,
172.16.101.0/24, and 172.16.103.0/24.

QUESTION 96

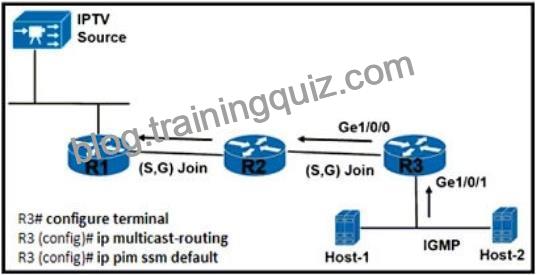

Refer to the exhibit. A network engineer is configuring router R3 to handle multicast streams, but Host-2 cannot send subscription messages to the IPTV source. Which configuration must the engineer apply to router R3 so it passes the IPTV stream to Host-2?

R3# configure terminal
R3(config)# no ip pim ssm default
R3(config)# interface gigabitethernet 1/0/0
R3(config-if)# ip pim sparse-mode
R3(config-if)# ip igmp version 3
R3(config-if)# ip pim ssm default
R3(config)# interface gigabitethernet 1/0/1
R3(config-if)# ip pim sparse-mode
R3(config-if)# ip igmp version 3
R3(config-if)# ip pim ssm default

R3# configure terminal
R3(config)# ip multicast-routing
R3(config)# interface gigabitethernet 1/0/0
R3(config-if)# ip pim sparse-mode
R3(config-if)# ip igmp version 3
R3(config)# interface gigabitethernet 1/0/1
R3(config-if)# ip pim sparse-mode
R3(config-if)# ip igmp version 3
R3(config-if)# ip pim ssm default

R3(config)# interface gigabitethernet 1/0/0
R3(config-if)# ip pim sparse-mode
R3(config-if)# ip igmp version 3
R3(config)# interface gigabitethernet 1/0/1
R3(config-if)# ip pim sparse-mode
R3(config-if)# ip igmp version 3

R3(config)# interface gigabitethernet 1/0/0
R3(config-if)# ip pim sparse-mode
R3(config)# interface gigabitethernet 1/0/1
R3(config-if)# ip pim sparse-mode
R3(config-if)# ip igmp version 3

QUESTION 97

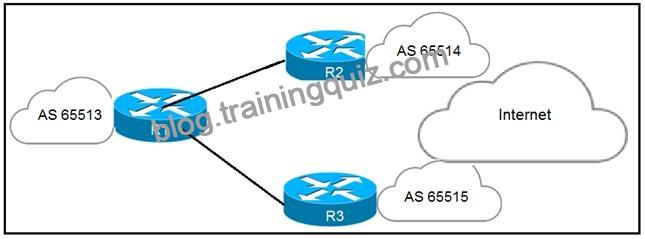

Refer to the exhibit.

An engineer has successfully fixed BGP peering issue. R1 has an established eBGP peering with R2 and R3. Which mechanism should the engineer apply in order to steer the traffic correctly?

The MED attribute can be applied on R2 to influence R1 to use it as the primary path.

The local preference attribute can be applied on R3 to influence AS 65513 to use AS 65515 as the secondary path.

The weight attribute can be applied on R2 to influence AS 65513 to use AS 65515 as the primary path.

The IGP metric can be manipulated on R1 to allow traffic to be load balanced between R2 and R3.

QUESTION 98

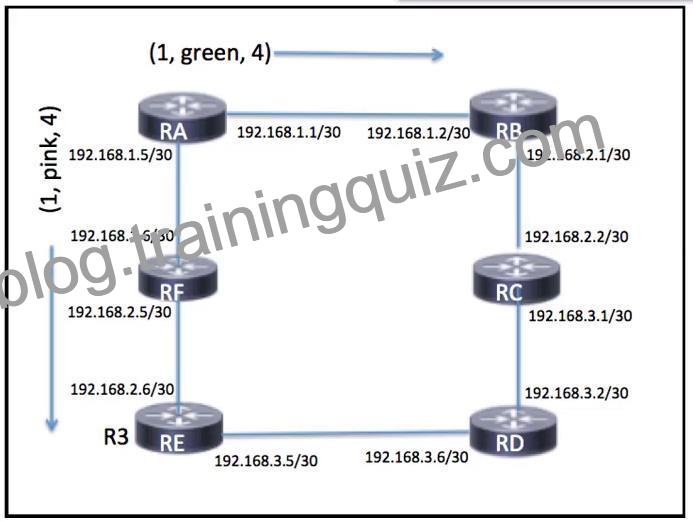

Refer to the exhibit.

The green policy is designed with low delay, and the pink policy is designed with low cost. What is the next hop for node A on its way to node D, with the objective of achieving a low delay?

192.168.3.2

192.168.1.6

192.168.3.6

192. 168.1.2

QUESTION 99

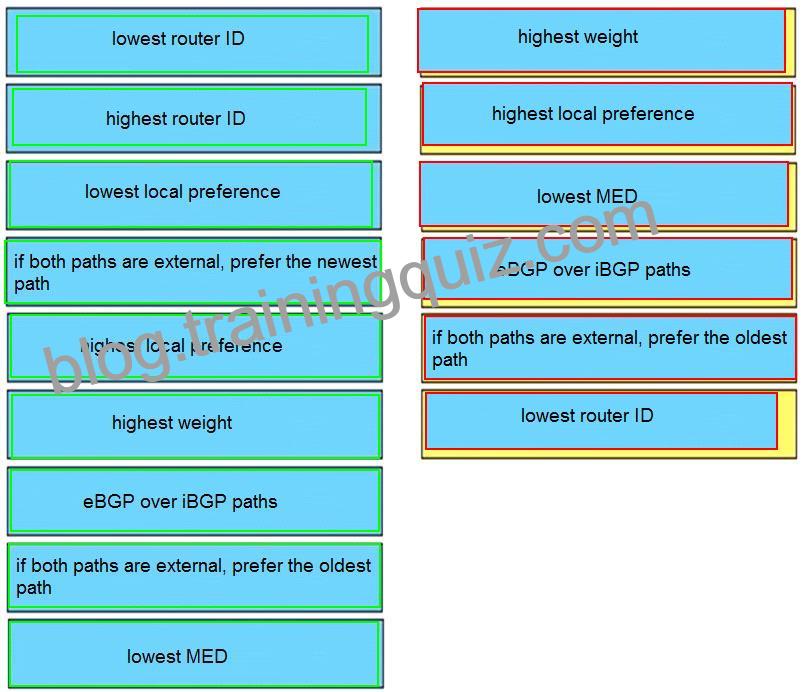

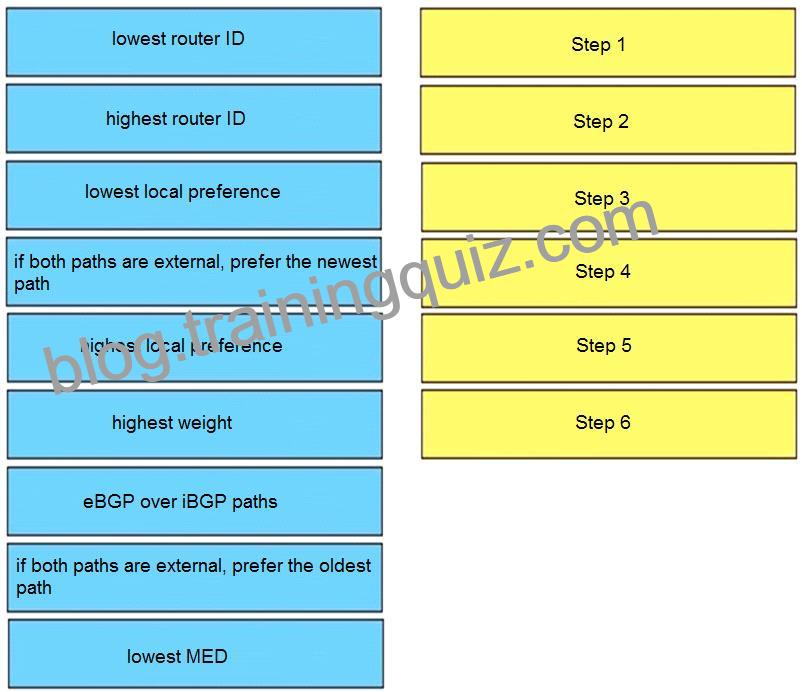

Drag and drop the attributes for the BGP route selection on the left into the correct order on the right. Not all options are used.

QUESTION 100
For which reason can two devices fail to establish an OSPF neighbor relationship?

The two devices have different process IDs

The two devices have different network types

The two devices have different router IDs

The two devices have the same area ID

QUESTION 101
What is the difference between a source tree and a shared tree in a multicast environment?

To route traffic from source to receiver a source tree uses a link-state routing protocol and a shared tree uses a distance-vector routing protocol.

A source tree has its root at the source, and a shared tree has its root at a designated rendezvous point.

To stream multicast from source to receiver, a source tree uses PIM-SM and a shared tree uses PIM-DM.

Source trees are the default type for bidirectional PIM, and PIM-DM uses shared trees by default.

QUESTION 102

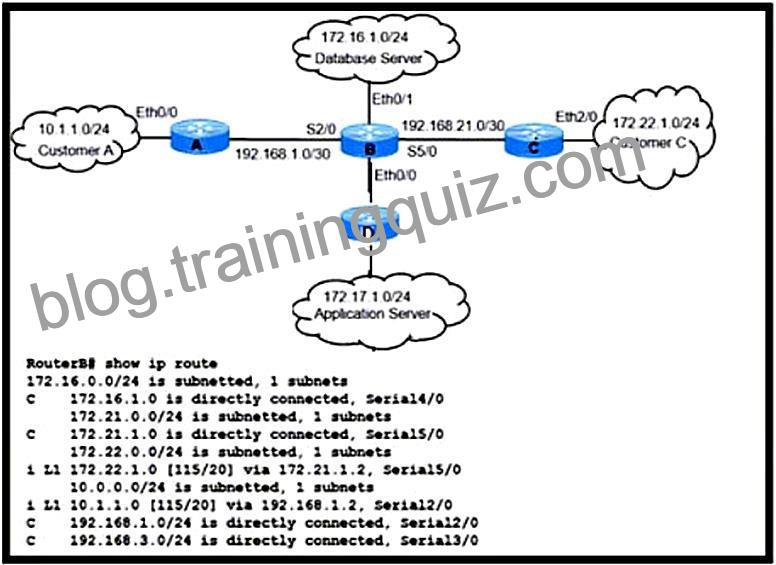

Refer to the exhibit. Customers A and C are experiencing packet drops when connecting to the application server. While troubleshooting the problem, the network engineer confines that the IS- IS Level-1/2 adjacency is up between routers A, B, C, and D and both customers can communicate with the database server without packet loss. Which action must the engineer take to resolve the issue?

Advertise the application server subnet in the router D IS-IS database

Advertise a static default route to the router B IS-IS database.

Leak the 172.17.1.0/24 route in the IS-IS databases on routers A and C.

Leak the customer A and customer C subnets in the router A IS-IS database.

QUESTION 103

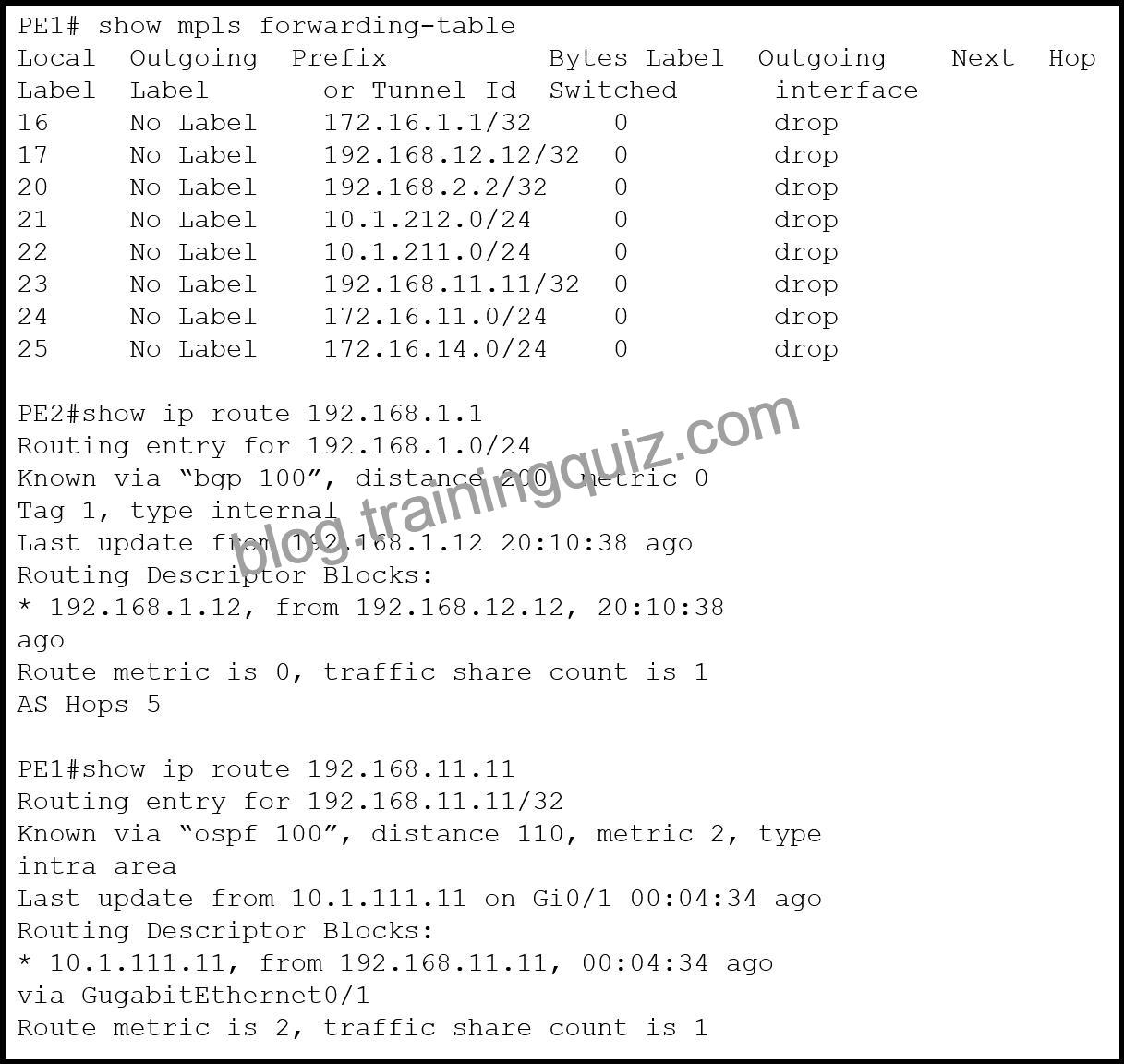

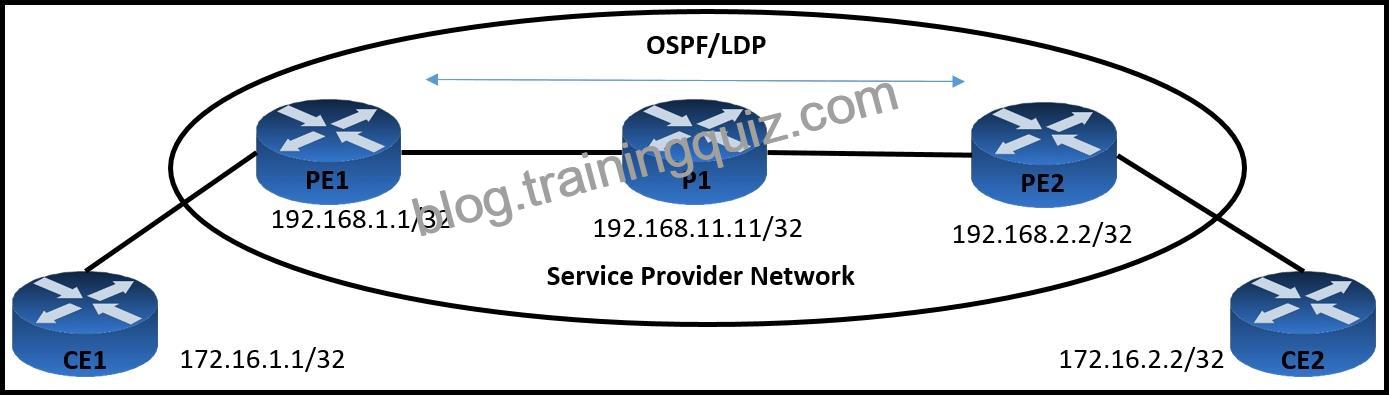

Refer to the exhibit. VPN users that are connected to PE routers are facing network issues.
Traffic that originates from CE1 drops before reaching CE2. An engineer finds no outgoing traffic statistics on PE1 and PE2 routers toward CE devices and finds that the PE1 router is running the older software image. Which action must be implemented to resolve the issues?

Enable LDP protocol on PE1 and PE2 routers.

Advertise P1 router loopback on PE1 in OSPF.

Enable CEF-based forwarding on PE1 router.

Advertise PE2 router loopback on PE1 in OSPF.

QUESTION 104
A network engineer is troubleshooting OSPF multiare
a. Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

hierarchical CLI

routing process enabled by default on all interfaces

DR support for topology management

show lp ospf topology command

QUESTION 105

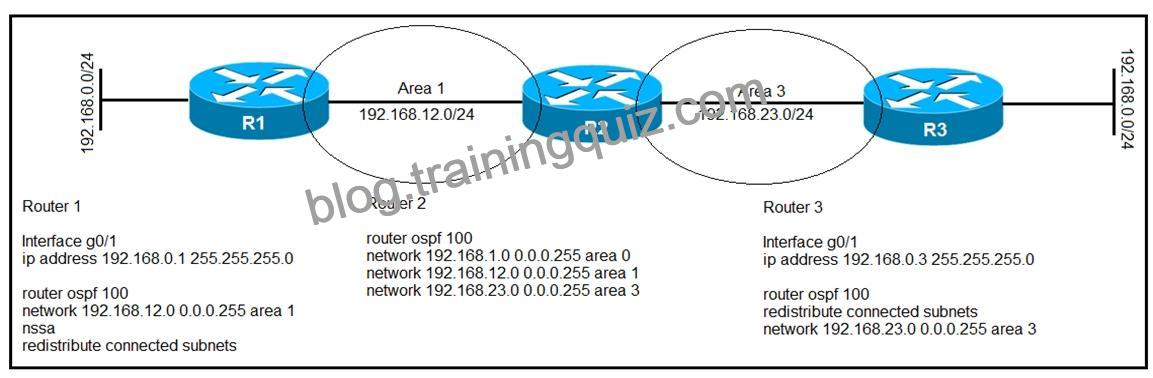

Refer to the exhibit.

After troubleshooting an OSPF adjacency issue, routers 1, 2, and 3 have formed OSPF neighbor relationships. Which statement about the configuration is true?

Router 2 receives a Type 5 LSAs from router 1 for its connected subnets

Router 2 uses router 3 as the next hop for 192.168.0.0/24

Router 2 uses router 1 as the next hop for 192.168.0.0/24

Router 2 receives a Type 7 LSAs from router 3 for its connected subnets

QUESTION 106
Refer to the exhibit.

Routers RA and RB are IS-IS peers configured for NSF but router RC is an IS-IS peer without NSF capability If RA undergoes processor switchover what is the effect on the network environment?

If RC is operating without the Cisco configuration option all three routers tear down their peering relationships and re-establish peering

All peer relationships remain up and the link-state database is unchanged

All peer relationships remain up, but the link-state database is rebuilt on each device

If RC is operating without the Cisco configuration option only 2 routers tear down their peering relationships and re-establish peering

QUESTION 107
Refer to the exhibit. A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?

Remove the allocate-labels command.

Reconfigure the route-policy ALL_LABELS to match all after the drop.

Reconfigure the route-policy ALL_LABELS to pass.

Remove the route policy and only configure “allocate-label”.

QUESTION 108
Refer to the exhibit.

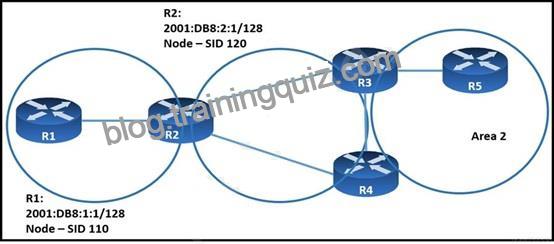

When implementing SRv6, which SID does R2 propagate into area 0 for the prefix 2001:DB8:1:1/128?

120

230

110

QUESTION 109

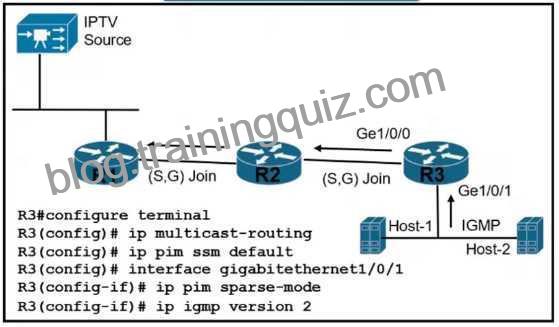

Refer to the exhibit. A customer reports that Host-1 is failing to receive streaming traffic from the IPTV source. The engineer has confirmed that hosts on router R2 are receiving traffic normally and that Host-1 is correctly sending subscription messages to join the IPTV stream.
Which action must the engineer take to correct the problem?
