[Oct 15, 2023] Free Juniper JN0-664 Exam Questions and Answer

Verified JN0-664 dumps Q&As Latest JN0-664 Download

Juniper JN0-664 exam is a challenging test that requires a lot of preparation. Candidates must have hands-on experience with Juniper Networks Service Provider Routing and Switching technologies to pass JN0-664 exam. They must also have a deep understanding of the concepts covered in the exam and be able to apply them in real-world scenarios.

Q26. Exhibit

R1 and R8 are not receiving each other’s routes
Referring to the exhibit, what are three configuration commands that would solve this problem? (Choose three.)

Configure loops and advertise-peer-as on routers in AS 64497 and AS 64450.

Configure loops on routers in AS 65412 and advertise-peer-as on routers in AS 64498.

Configure as-override on advertisement from AS 64500 toward AS 64512.

Configure remove-private on advertisements from AS 64497 toward AS 64498

Configure remove-private on advertisements from AS 64500 toward AS 64499

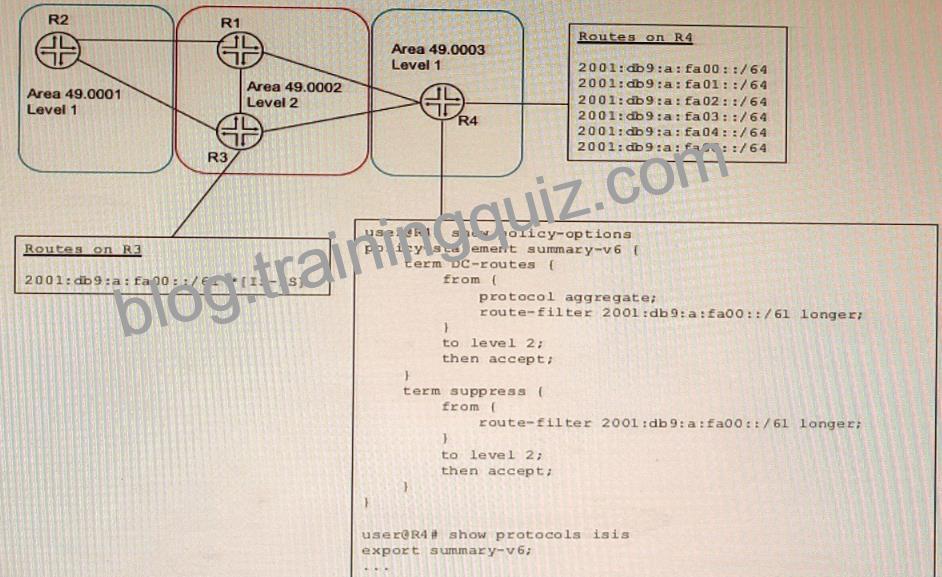

Q27. Exhibit

A network designer would like to create a summary route as shown in the exhibit, but the configuration is not working.
Which three configuration changes will create a summary route? (Choose three.)

set policy-options policy-statement leak-v6 term DC-routes then reject

delete policy-options policy-statement leak-v6 term DC-routes from route-filter 2001: db9 :a: fa00 : :/6l longer

set policy-options policy-statement leak-v6 term DC-routes from route-filter 2001:db9:a:faOO::/61 exact

delete protocols isis export summary-v6

set protocols isis import summary-v6

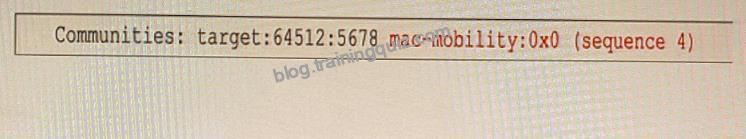

Q28. Exhibit

You have MAC addresses moving in your EVPN environment
Referring to the exhibit, which two statements are correct about the sequence number? (Choose two)

It identifies MAC addresses that should be discarded.

It resolves conflicting MAC address ownership claims.

It helps the local PE to identify the latest advertisement.

It is advertised using a Type 2 message

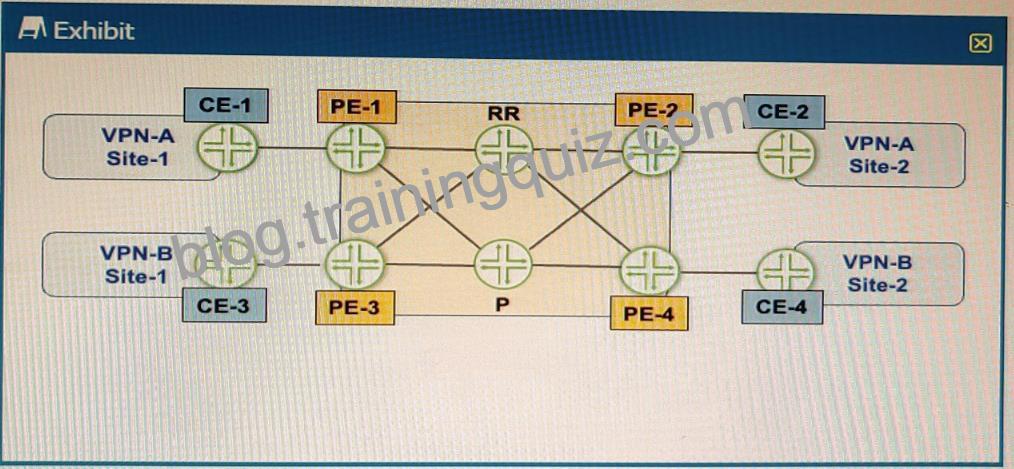

Q29. Exhibit

Referring to the exhibit, PE-1 and PE-2 are getting route updates for VPN-B when neither of them service that VPN Which two actions would optimize this process? (Choose two.)

Configure the family route-target statement on the PEs.

Configure the family route-target statement on the RR

Configure the resolution rib bgp . 13vpn . 0 resolution-ribs inet. 0 Statement on the PEs.

Configure the resolution rib bgp.l3vpn.O resolution-ribs inet. 0 Statement on the RR

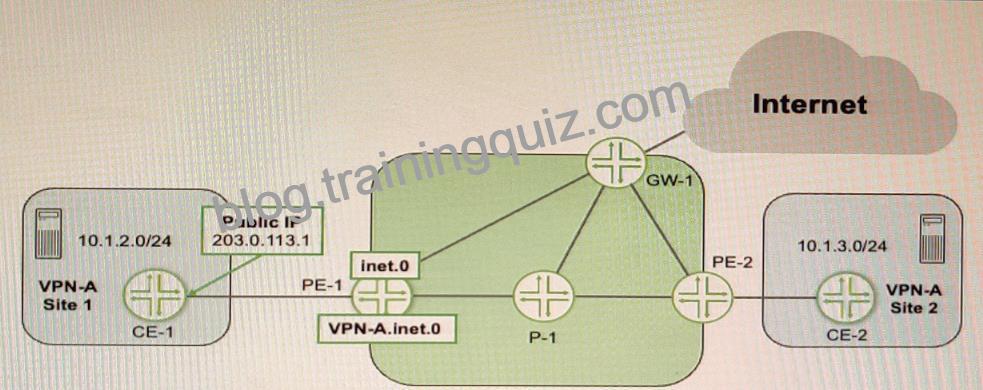

Q30. Exhibit

Referring to the exhibit, CE-1 is providing NAT services for the hosts at Site 1 and you must provide Internet access for those hosts Which two statements are correct in this scenario? (Choose two.)

You must configure a static route in the main routing instance for the 10 1 2.0/24 prefix that uses the VPN-A.inet.0 table as the next hop

You must configure a static route in the main routing instance for the 203.0.113.1/32 prefix that uses the VPN-A.inet.0 table as the next hop.

You must configure a RIB group on PE-1 to leak a default route from the inet.0 table to the VPN-A.inet.0 table.

You must configure a RIB group on PE-1 to leak the 10 1 2.0/24 prefix from the VPN-A.inet.0 table to the inet.0 table.

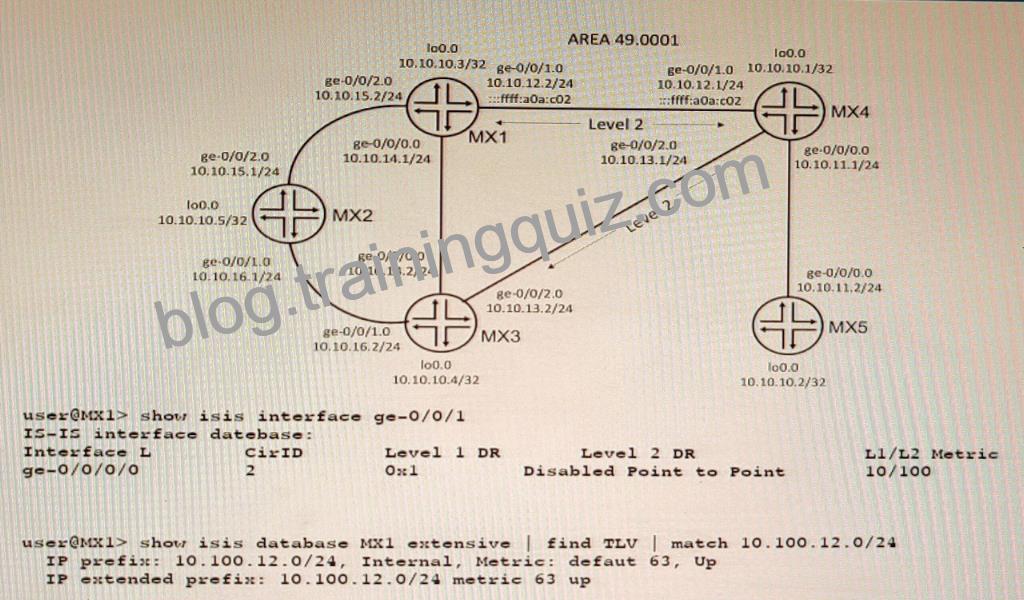

Q31. Exhibit

A network is using IS-IS for routing.
In this scenario, why are there two TLVs shown in the exhibit?

There are both narrow and wide metric devices in the topology

The interface specified a metric of 100 for L2.

Wide metrics have specifically been requested

Both IPv4 and IPv6 are being used in the topology

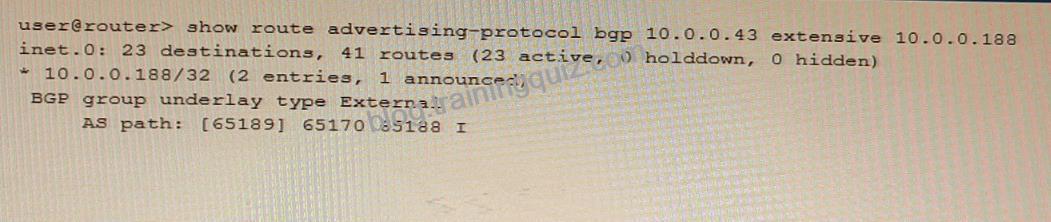

Q32. Exhibit

Referring to the exhibit, what do the brackets [ ] in the AS path identify?

They identify the local AS number associated with the AS path if configured on the router, or if AS path prepending is configured

They identify an AS set, which are groups of AS numbers in which the order does not matter

They identify that the autonomous system number is incomplete and awaiting more information from the BGP protocol.

They identify that a BGP confederation is being used to ensure that there are no routing loops.

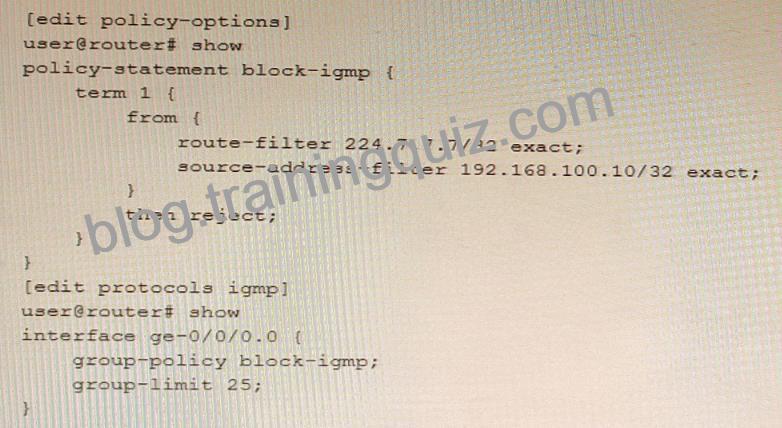

Q33. Exhibit

Based on the configuration contents shown in the exhibit, which statement is true?

Joins for group 224.7.7.7 are rejected if the source address is 192.168.100.10

Joins for any group are accepted if the group count value is less than 25.

Joins for group 224.7.7.7 are always rejected, regardless of the group count.

Joins for group 224.7.7.7 are accepted if the group count is less than 25

Q34. Which two statements are correct about a sham link? (Choose two.)

It creates an OSPF multihop neighborship between two PE routers.

It creates a BGP multihop neighborship between two PE routers.

The PEs exchange Type 1 OSPF LSAs instead of Type 3 OSPF LSAs for the L3VPN routes

The PEs exchange Type 3 OSPF LSAs instead of Type 1 OSPF LSAs for the L3VPN routes.

Q35. After a recent power outage, your manager asks you to investigate ways to automatically reduce the impact caused by suboptimal routing in your OSPF and OSPFv3 network after devices reboot.
Which three configuration statements accomplish this task? (Choose three.)

set protocols ospf overload timeout 900

set protocols ospf3 realm ipv4-unicast overload timeout 900

set protocols ospf overload

set protocols oapf3 overload timeout 900

set protocols ospf3 overload

Q36. Which two statements are correct about IS-IS interfaces? (Choose two.)

If a broadcast interface is in both L1 and L2, one combined hello message is sent for both levels.

If a point-to-point interface is in both L1 and L2, separate hello messages are sent for each level.

If a point-to-point interface is in both L1 and L2, one combined hello message is sent for both levels.

If a broadcast interface is in both L1 and L2, separate hello messages are sent for each level

Q37. A packet is received on an interface configured with transmission scheduling. One of the configured queues In this scenario, which two actions will be taken by default on a Junos device? (Choose two.)

The excess traffic will be discarded

The exceeding queue will be considered to have negative bandwidth credit.

The excess traffic will use bandwidth available from other queueses

The exceeding queue will be considered to have positive bandwidth credit

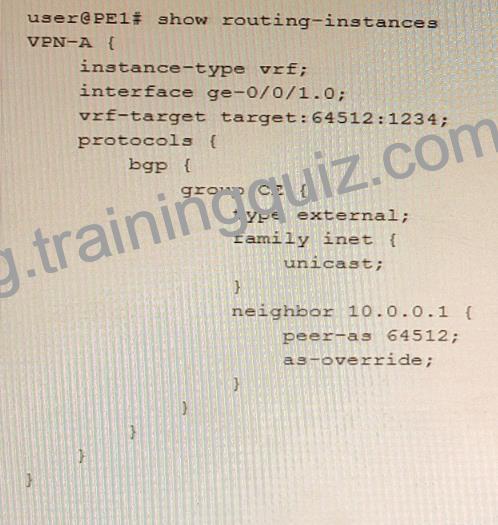

Q38. Exhibit

Which two statements about the configuration shown in the exhibit are correct? (Choose two.)

This VPN connects customer sites that use different AS numbers.

This VPN connects customer sites that use the same AS number

A Layer 2 VPN is configured.

A Layer 3 VPN is configured.

Q39. Which two statements about IS-IS are correct? (Choose two.)

PSNPs are flooded periodically.

PSNPs contain only descriptions of LSPs.

CSNPs are flooded periodically

CSNPs contain only descriptions of LSPs.

Q40. Exhibit

Referring to the exhibit, a working L3VPN exists that connects VPN-A sites CoS is configured correctly to match on the MPLS EXP bits of the LSP, but when traffic is sent from Site-1 to Site-2, PE-2 is not classifying the traffic correctly What should you do to solve the problem?

Configure the explicit-null statement on PE-1.

Configure the explicit-null statement on PE-2

Configure VPN prefix mapping for the PE-1_to_PE-2 LSP

Set a static CoS value for the PE-1_to_PE-2 LSP

Q41. You are configuring a BGP signaled Layer 2 VPN across your MPLS enabled core network. In this scenario, which statement is correct?

You must assign a unique site number to each attached site’s configuration.

This type of VPN only supports Ethernet interfaces when connecting to CE devices.

This type of VPN requires the support of the inet-vpn NLRI on all core BGP devices

You must use the same route-distinguiaher value on both PE devices.

Q42. Exhibit
user@Rl show configuration interpolated-profile { interpolate {
fill-level [ 50 75 drop-probability [ > }
class-of-service drop-profiles
];
20 60 ];
Which two statements are correct about the class-of-service configuration shown in the exhibit? (Choose two.)

The drop probability jumps immediately from 20% to 60% when the queue level reaches 75% full.

The drop probability gradually increases from 20% to 60% as the queue level increases from 50% full to
75% full

To use this drop profile, you reference it in a scheduler.

To use this drop profile, you apply it directly to an interface.

Explanation
class-of-service (CoS) is a feature that allows you to prioritize and manage network traffic based on various criteria, such as application type, user group, or packet loss priority. CoS uses different components to classify, mark, queue, schedule, shape, and drop traffic according to the configured policies.
One of the components of CoS is drop profiles, which define how packets are dropped when a queue is congested. Drop profiles use random early detection (RED) algorithm to drop packets randomly before the queue is full, which helps to avoid global synchronization and improve network performance. Drop profiles can be discrete or interpolated. A discrete drop profile maps a specific fill level of a queue to a specific drop probability. An interpolated drop profile maps a range of fill levels of a queue to a range of drop probabilities and interpolates the values in between.
In the exhibit, we can see that the class-of-service configuration shows an interpolated drop profile with two fill levels (50 and 75) and two drop probabilities (20 and 60). Based on this configuration, we can infer the following statements:
* The drop probability jumps immediately from 20% to 60% when the queue level reaches 75% full. This is not correct because the drop profile is interpolated, not discrete. This means that the drop probability gradually increases from 20% to 60% as the queue level increases from 50% full to 75% full. The drop probability for any fill level between 50% and 75% can be calculated by using linear interpolation formula.
* The drop probability gradually increases from 20% to 60% as the queue level increases from 50% full to
75% full. This is correct because the drop profile is interpolated and uses linear interpolation formula to calculate the drop probability for any fill level between 50% and 75%. For example, if the fill level is
60%, the drop probability is 28%, which is calculated by using the formula: (60 – 50) / (75 – 50) * (60 –
20) + 20 = 28.
* To use this drop profile, you reference it in a scheduler. This is correct because a scheduler is a component of CoS that determines how packets are dequeued from different queues and transmitted on an interface. A scheduler can reference a drop profile by using the random-detect statement under the
[edit class-of-service schedulers] hierarchy level. For example: scheduler test { transmit-rate percent 10; buffer-size percent 10; random-detect test-profile; }
* To use this drop profile, you apply it directly to an interface. This is not correct because a drop profile cannot be applied directly to an interface. A drop profile can only be referenced by a scheduler, which can be applied to an interface by using the scheduler-map statement under the [edit class-of-service interfaces] hierarchy level. For example: interfaces ge-0/0/0 { unit 0 { scheduler-map test-map; } }

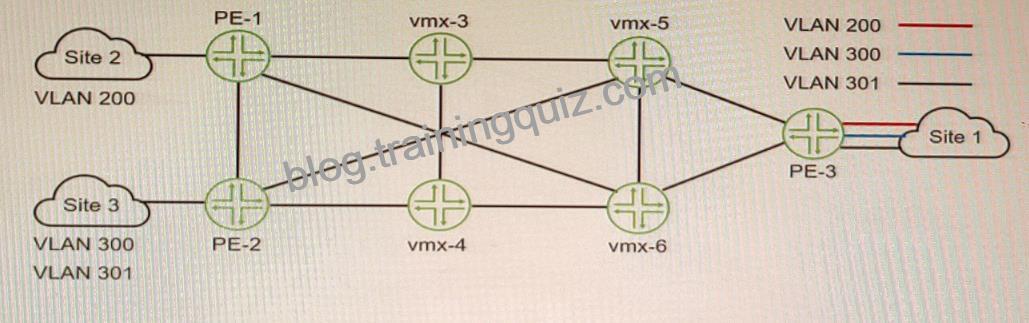

Q43. Exhibit

You want Site 1 to access three VLANs that are located in Site 2 and Site 3 The customer-facing interface on the PE-1 router is configured for Ethernet-VLAN encapsulation.
What is the minimum number of L2VPN routing instances to be configured to accomplish this task?

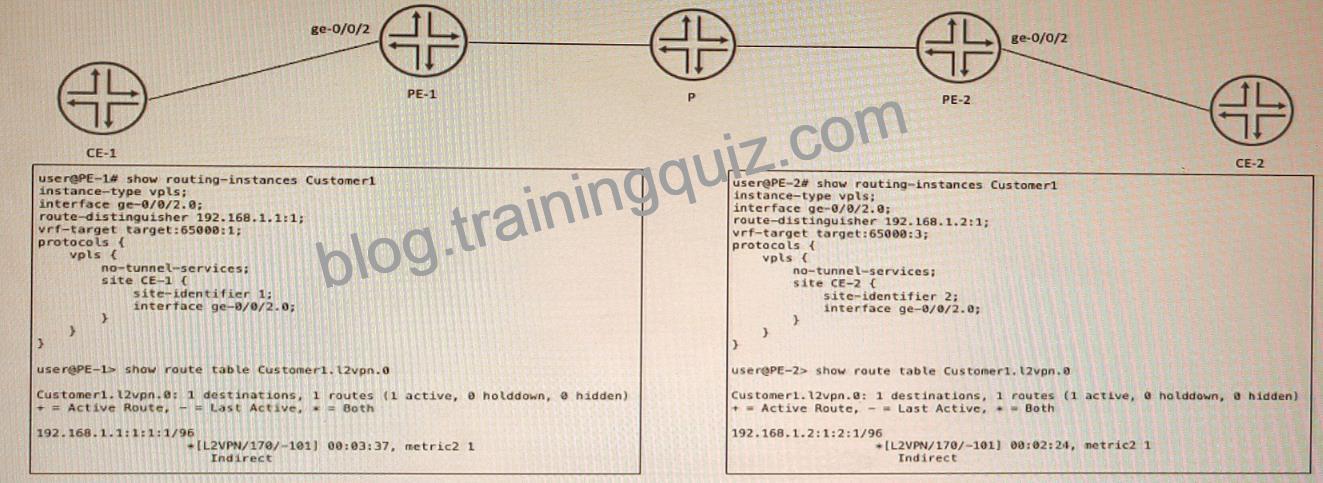

Q44. Exhibit

CE-1 and CE-2 are part of a VPLS called Customer1 No connectivity exists between CE-1 and CE-2. In the process of troubleshooting, you notice PE-1 is not learning any routes for this VPLS from PE-2, and PE-2 is not learning any routes for this VPLS from PE-1.

The route target must match on PE-1 and PE-2.

The route distinguisher must match on PE-1 and PE-2.

The instance type should be changed to I2vpn.

The no-tunnel-services statement should be deleted on both PEs.

Juniper JN0-664 exam, also known as the Service Provider Professional (JNCIP-SP) exam, is designed to test the knowledge and skills of networking professionals who work in service provider environments. Service Provider, Professional (JNCIP-SP) certification exam validates the proficiency of candidates in configuring, managing, and troubleshooting Juniper Networks service provider routing platforms and operating systems.
