Give Push to your Success with Avaya Aura 72201X Exam Questions

72201X 100% Guarantee Download 72201X Exam PDF Q&A

Avaya 72201X certification exam is a valuable credential for IT professionals who want to demonstrate their expertise in managing Avaya Aura® Core Components. Avaya Aura® Core Components Support Certified Exam certification is recognized by businesses around the world as a standard of excellence in Avaya Aura® Core Components management. IT professionals who hold this certification are in high demand and can expect to earn competitive salaries.

NEW QUESTION 33
How can an inactive SM100 be reset?

Click the repair button on the Replication page with the affected Avaya Aura Session Manager (SM) selected.

Click the ‘Reset’ button on the Security Module Status page in Avaya Aura System Manager (SMGR).

Run the resetSM100 command from RHEL Command Line Interface of Avaya Aura Session Manager (SM)

Restart Services on the Avaya Session Border Controller for Enterprise (SBCE).

Run the reboot SM100 command from RHEL Command Line Interface of Avaya Aura System Manager (SMGR).

Use the SMGR web interface to reset the SM100 by navigating to Services > Security > Security Module.

NEW QUESTION 34
When does Communication Manager insert the shortcut flag during call processing?

During the termination phase (imsterm) of call processing

During the origination phase (imsorig) of call processing

During the initialization phase (imsinit) of call processing

During the dialing analysis phase (imsdialana) of call processing

NEW QUESTION 35
After an Avaya Aura Communication Manager (CM) upgrade, a customer called Avaya support because their H.323 telephones were unable to login. Support was able to confirm that the telephones had not been upgraded.
Which pre-implementation step was omitted?

Insure Presence Services was upgraded correctly.

Test all third-party equipment and software.

Verify the firmware version installed is compatible with existing versions.

Provide accurate licensing specification.

NEW QUESTION 36
You notice that the Entity-Link between your Session Manager and Communication Manager is down.
From Communications Manager, which two commands are used to verify the health of this SIP link? (Choose two.)

list trace station

status signaling group

status trunk

status health

statapp

NEW QUESTION 37
A customer wants to implement CAC Sharing between the Session Manager (SM) in Main office and Communication Manager located in a branch location. What are the steps involved in implementing CAC Sharing?

Configure Network Regions and Network Regions Group in Communication Manager, assign Bandwidth limits to the location, enable Shared Bandwidth Management for CM SIP entity in Session Manager.

Configure Network Regions and Network Regions Group in Communication Manager, assign Bandwidth limits to the Entity Link, enable Shared Bandwidth Management for CM SIP entity in Session Manager.

Configure Network Regions and Network Regions Group in Communication Manager, enable Shared Bandwidth Management, assign Bandwidth limits to the location, enable Shared Bandwidth Management for CM SIP entity in Session Manager.

Configure Network Regions and Shared Bandwidth Management Groups in Communication Manager, assign Bandwidth limits to the location, enable Shared Bandwidth Management for CM SIP entity in Session Manager.

Configure Network Regions and Shared Bandwidth Management Groups in Communication Manager, enable Shared Bandwidth Management, assign Bandwidth limits to the location, enable Shared Bandwidth Management for Network Region SIP entity in Session Manager.

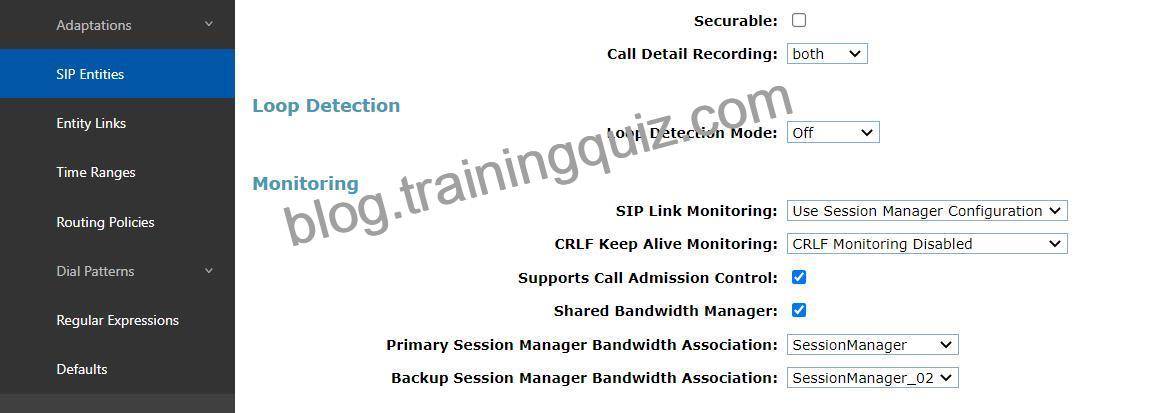

Explanation
Graphical user interface, text, application Description automatically generated

NEW QUESTION 38
Which five statements about media-processing resources (DSPs) are true? (Choose five.)

Two-party calls originated by SIP stations or trunks, and terminated by H.323 trunks, media gateways, or other vendors’ H.323 stations, will typically shuffle if CM is configured to do so.

Two-party calls originated by H.323 stations, trunks, or media gateways, and terminated by SIP stations or trunks, cannot shuffle.

SIP-SIP two-party calls will always use SIP Direct Media if Communication Manager (CM) is configured to do so.

H.323-H.323 two-party calls will always shuffle to establish a direct media path if CM is configured to do so.

If a direct media path cannot be established between two IP endpoints, the call will fail from release 7.0.

CM can use DSP resources for features such as conferencing, music-on-hold, and voice messaging.

SIP-SIP multi-party calls will shuffle to establish a direct media path if CM is configured to do so.

NEW QUESTION 39
The client has finished deploying Avaya Aura Communication Manager (CM) and has signed a service contract with Avaya for technical support.
What should the system administrator do in CM to allow Avaya services to log in and support the platform?

Run EASGManage -disableEASG command

Contact Avaya services and request login credentials

Run EASGManage -enableEASG command

Enable remote access in CM SAT

Run EASGTurnOn command

NEW QUESTION 40
Which three statements regarding Full and Half call model processing are true? (Choose three.)

Avaya Aura Session Manager (SM) always performs Half call model processing.

Avaya Aura Communication Manager (CM) configured as a Feature Server performs Full call model processing.

Avaya Aura Communication Manager (CM) configured as an Evolution Server performs Full call model processing.

Avaya Aura Session Manager (SM) always performs Full call model processing.

CM performs Half call model processing when it acts as a SIP user agent.

CM performs Full call model processing when it acts as a SIP registrar.

NEW QUESTION 41

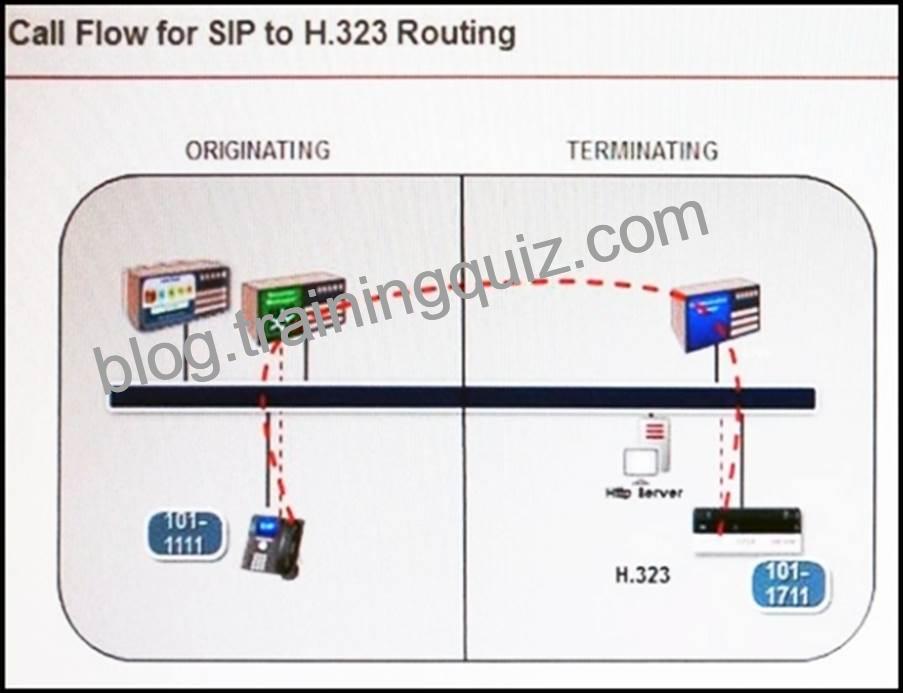

Refer to the exhibit.

A SIP user is calling an H.323 user.
In this call flow, during which phase does the Avaya Communication Manager (CM) Evolution Server handle the processing for each endpoint?

H.323 endpoint in originating phase, SIP endpoint in terminating phase

SIP endpoint in originating phase, H.323 endpoint in terminating phase

both endpoints in the terminating phase

both endpoints in the originating phase

NEW QUESTION 42
Which two critical pieces of Avaya Aura Communication Manager (CM) information can be obtained from the ECS log located in the /var/log/ecs directory? (Choose two.)

Capacity and certificate status

Alarms and errors

Denial events

Licensing status

A log of systems restarts

NEW QUESTION 43
When a 96xx telephone with SIP firmware boots up, it goes through a number of steps. These steps include:
Phone Registration.
Download PPM.
Obtain IP Address and Utility Server address from DHCP Server.
Check if firmware upgrade is required and download 46xxsettings.txt file.
Send Subscribe (avaya-cm-feature-status) to Avaya Aura Communication Manager (CM) via Avaya Aura Session Manager (SM).
What is the correct sequence of these steps?

3, 1, 5, 1, 2

3, 5, 1, 2, 4

3, 4, 2, 1, 5

3, 4, 1, 5, 2

4, 3, 1, 2, 5

5, 3, 1, 2, 4

Explanation
Source: https://downloads.avaya.com/css/P8/documents/100182495

NEW QUESTION 44
When one Avaya SIP Telephone (AST) user agent calls another AST user agent, Session Manager goes through different phases of processing the call.
What is the maximum number of Phase Tags and what are they called?

Four – imsorig, origdone, imsterm, termdone

Two – origappseq and termappseq

Three – ingress, process, egress

Two – imsorig and imsterm

NEW QUESTION 45
Which event packages would you expect to see an AST Endpoint subscribe to?

diag, avaya-cm-feature-status, avaya-ccs-profile, reg and message-summary

avaya-cm-feature-status, entity links, reg and message-summary

avaya-ccs-profile, network status and message-summary dialog

diag, avaya-cm-feature-status, avaya ccs profile and network status

entity links, avaya-cm-feature-status, avaya-ccs-profile and reg

NEW QUESTION 46
A customer has just configured Avaya Aura Media Server (AAMS) on their Avaya Aura Communication Manager (CM). They are saying that the AAMS is never being used by CM, but instead is always using the G450 gateways to provide DSP resources. The customer has checked the status of the Media Server and the Signaling Group and both show In-Service. They have also checked that a Media Server License is installed on WebLM, and the status of the Media Server is showing Element Status as being normal. Which statement describes the cause of this problem?

The CM license has no CM Media Server VoIP Channels.

No trunk-group members have been configured.

The VoIP Channel License Limit has not been set on the media-server CM SAT screen.

The Dedicated VoIP Channel Licenses has not been set on the media-server CM SAT screen.

The Media Server is not added as a resource to the call processing entity.

NEW QUESTION 47
In the Avaya Aura Core, which two modes can Communication Manager be deployed in?

Call Server

Hybrid Server

Evolution Server

Communication Server

Feature Server

None of the above

NEW QUESTION 48
Avaya Subscription event packages are used to subscribe to real-time event notifications. Which three of the following are Avaya Subscription event packages?

avaya-ua-service-state

avaya-ccs-profile

avaya-cm-feature-status

avaya-ldap-feature-status

avaya-dialog-state

avaya-trunk-status

NEW QUESTION 49
What is the reason why the initial REGISTER request from a SIP endpoint is rejected by Avaya Aura Session Manager (SM)?

The initial REGISTER request does not contain authentication details.

The initial REGISTER request is rejected only if the user provided the wrong security code/password.

It must confirm the reliable delivery of this initial REGISTER request.

System manager needs time to look-up the Communication Address in its database.

The initial REGISTER request contains an invalid contact header.
