Autodesk ACP-01101 certification exam is recognized worldwide as a standard for demonstrating proficiency in AutoCAD drafting and design. It is a valuable credential for professionals who want to advance their careers in the industry. Autodesk Certified Professional: AutoCAD for Drafting and Design certification exam covers various topics, including creating and modifying objects, working with layers, and using annotation tools. ACP-01101 exam also tests the ability of professionals to work with advanced features, such as 3D modeling, rendering, and animation.

NO.47

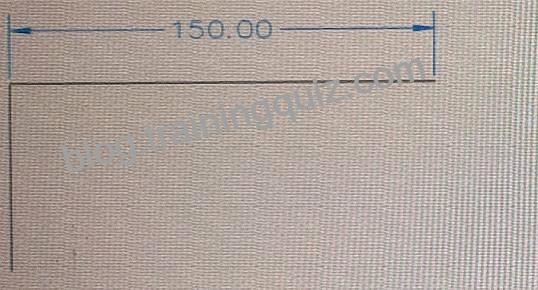

You have a line segment that is 150 units long as shown in the exhibit.
You need the line to be 200 units long without adding any additional linework. The leftmost end of the line must remain in the current position.
What should you do?

From the Project option of the Extend command, enter 50 units, and then select the right end of the line.

From the Delta option of the Lengthen command, enter 50! units and then select the right end of the line

From the Delta option of the Lengthen command, enter 200 units and then select the right end of the line

From the Edge Extension option of the Extend command, enter 50 units, and then select the right end of the line

NO.48

A drawing file contains existing linework where the polylines are not joined end to end (as shown in the exhibit) The individual polylines must be converted to a single polyline that contains all segments.
How should the polylines to joined?

Use the PEDIT command and select the Join option

Use me PEDIT command and select Multiple and then the Fit option

Use the JOIN command

Use the PEDIT command and select Multiple and then the Join option

NO.49 A CAD designer uses Microsoft Excel for project calculations and then uses the data link functionality of AutoCAD to include those calculations as table objects within their protect drawings.
The designer needs to share their AutoCAD drawing (.dwg) files with the Microsoft Excel ( xisx) tiles included within their drawing set as data links.
Which method should the designer use to do this? (Note. The Mac version is shown in parentheses.)

Use the FXPORT command with the tile type set to DXX Extract (*dxx)

Use ETRANSMIT and include data link tiles

Use the External References (Reference Manager palette and add data link files.

Use PUBLISH and modify Publish Options

NO.50 Refer to exhibit.
Exhibit 1:

Exhibit 2:

A CAD designer edits two different dimensions by double-clicking on each dimension.
The first dimension has a dark solid color background behind the dimension text, as shown in exhibit 1. The second dimension contains thy dimension text but no background color, as shown in exhibit 2.
When the dimensions are not being edited, they look the same.
Why docs the second dimension look different?

A background mask has been enabled on the dimension text

The dimension text field has been replaced

The dimension style has designated a frame around the text.

The dimension has a different layer assigned to It.

NO.51 What should be typed at the command line in order to start creating a line for drawing reference that starts at a defined point and extends to infinity in the designated direction?

CURSORSIZE

MLINE

XLINE

RAY

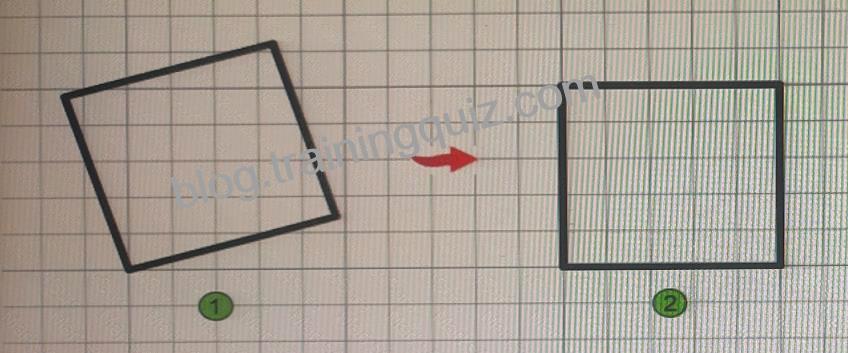

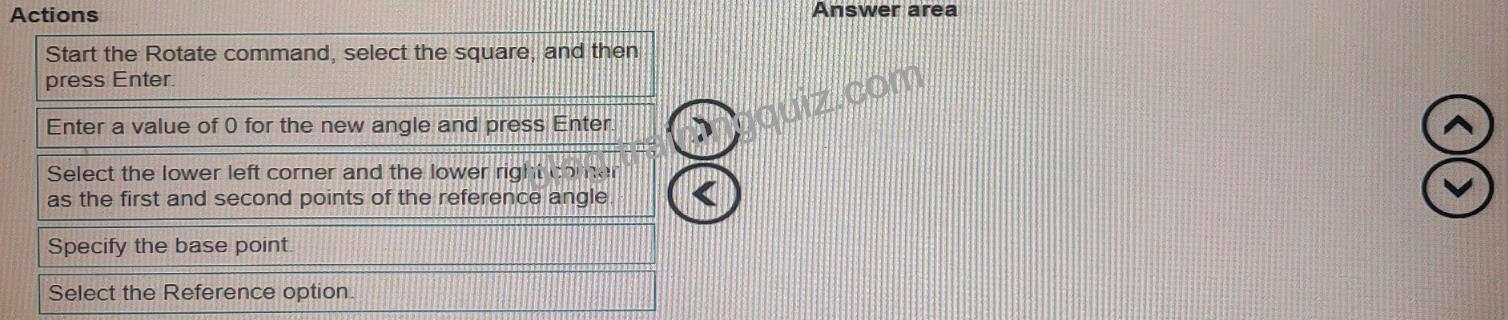

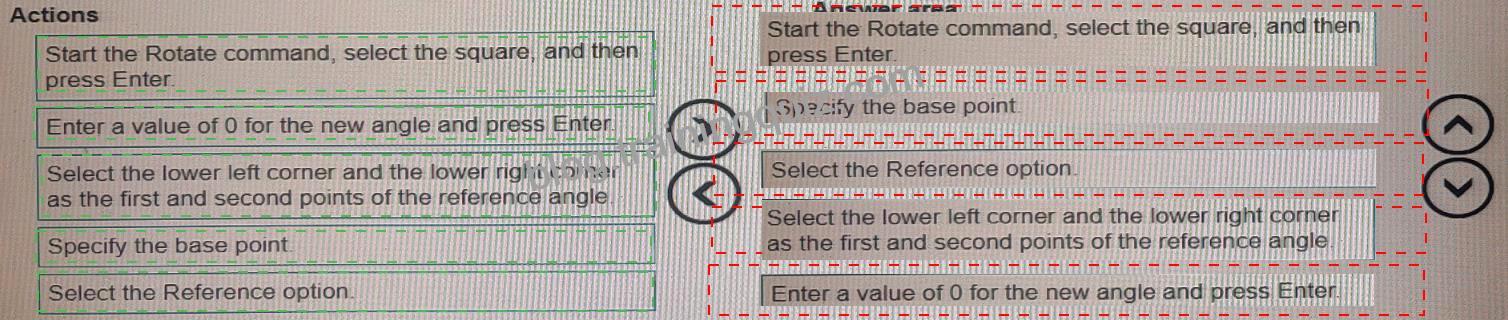

NO.52 In which order should you perform the actions to rotate square (1) to match the angle of square (2).
Move all actions to the answer area and place them in the correct order.

NO.53 A CAD designer is working on a project where the only drawing available is in POT format The designer imports the PDP into the drawing, but the text objects arc now polylines.
what needs to the done to convert the polylines to text objects.

Use the Combine Text tool (TXT2MTXT) and select all of the objects.

Use the Recognize SHX Text tool (PDFSHXTFXT) and select all of the objects

Use the Edit Polyline (PEDIT) command. Select all of the objects and use the Join option

Use the JOIN command and select all of the objects.

NO.54 You plan to draw a line at an angle of 6.25 degrees.

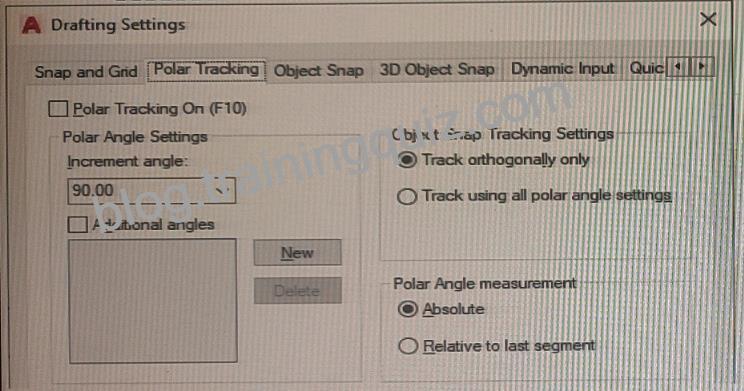

Where in the user interface do you configure polar tracking to work at this angle after selecting Polar Tracking On?
Note: Exhibit shown is the AutoCAD interface in Wind. Which the AutoCAD for the Mac version differs in appearance, the correct answers correlate in the options.

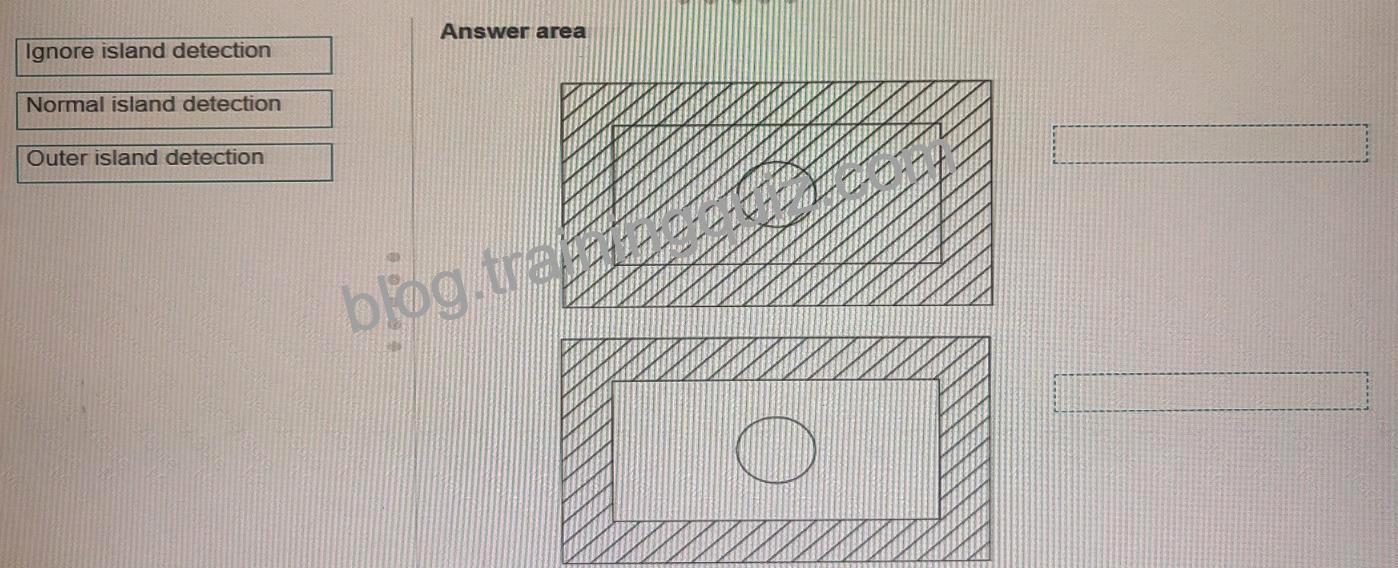

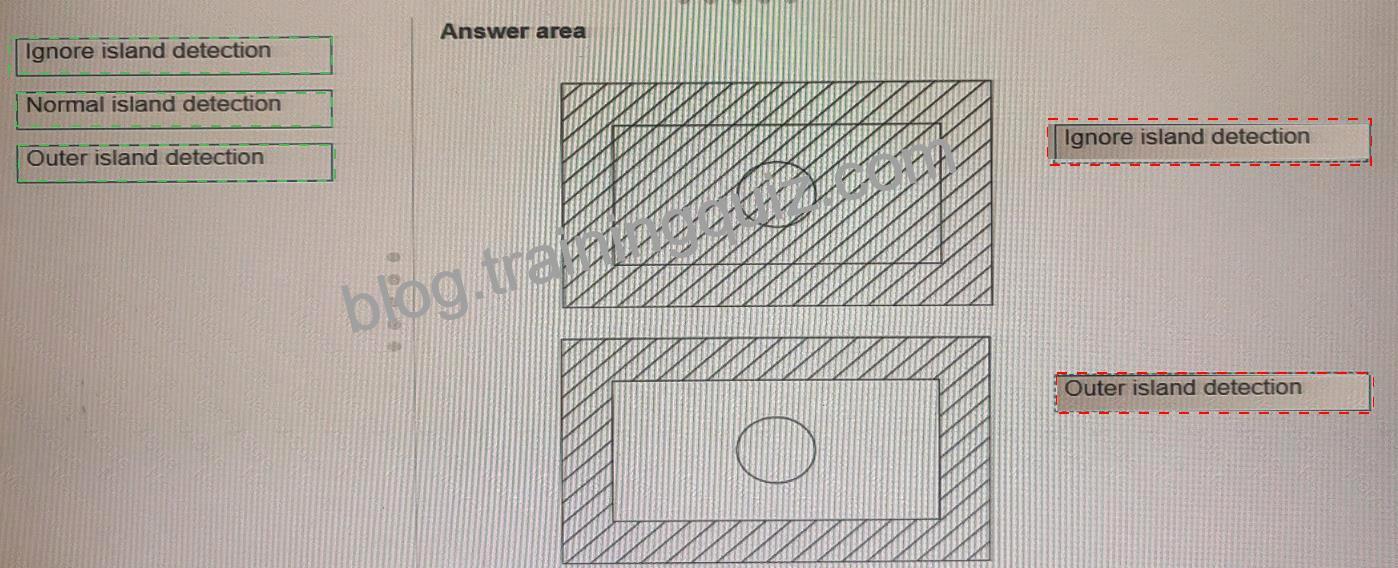

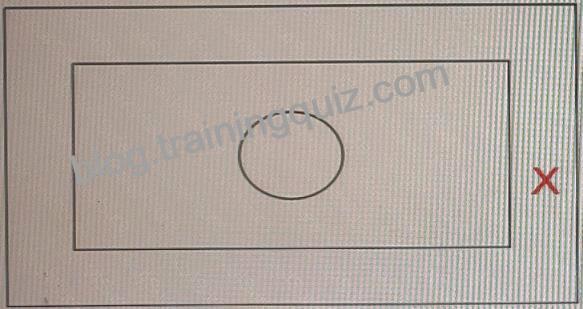

NO.55 You are using the HATCH command in a drawing. You select the internal point that corresponds with the X as shown in the following exhibit.
Move each setting from the list on the left to the corresponding result on the right.

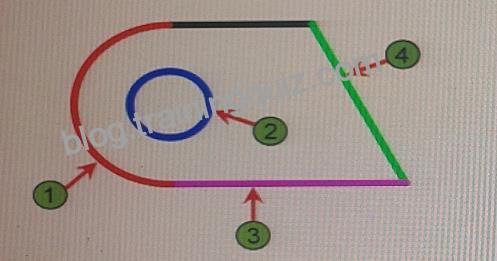

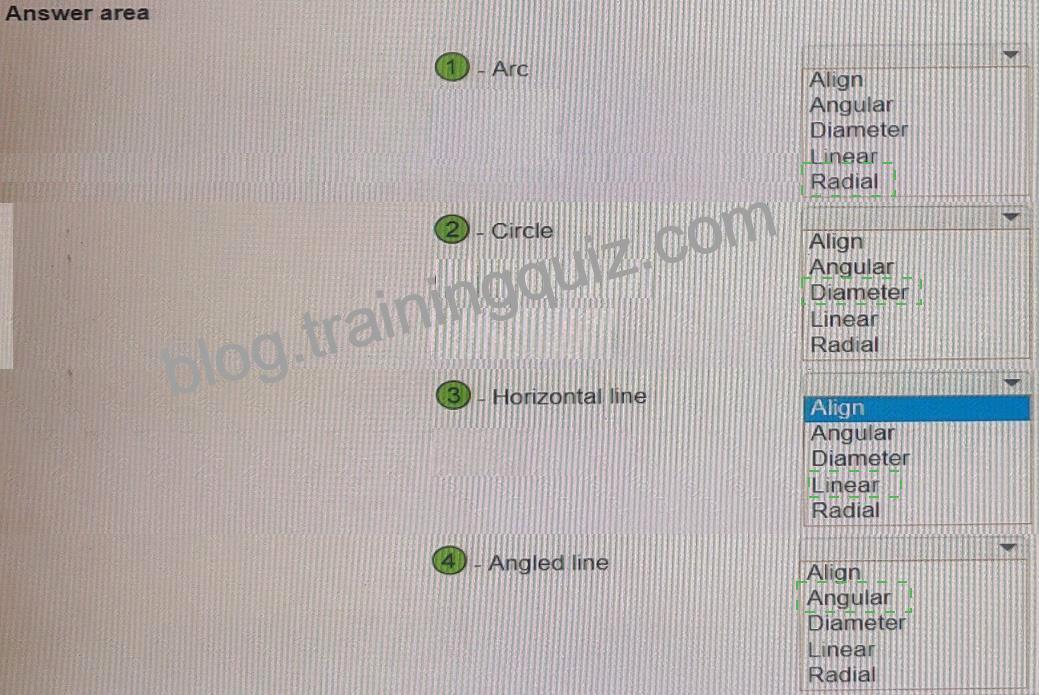

NO.56 You have the drawing shown in the exhibit.

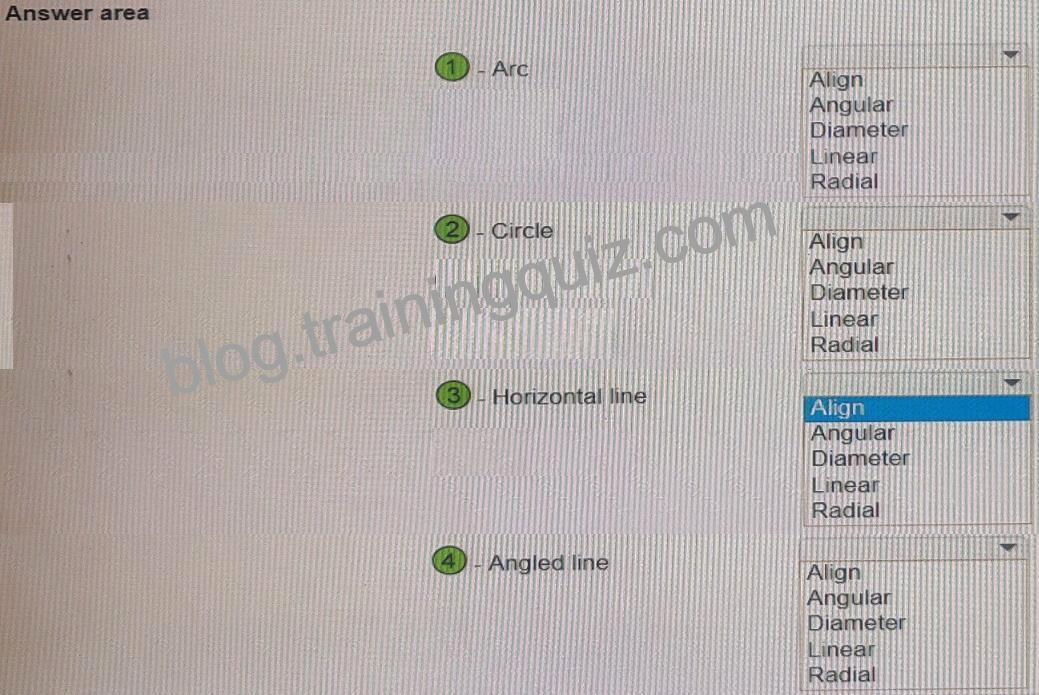

You are using the DIM command to preview suitable dimension type objects in the drawing.
Which dimension type will appear when you hover over each object? Select the appropriate dimension type from each of the drop-down lists.

NO.57 A company’s central server holds project directories that contain drawings. Team members who work onsite copy a directory locally to work offline.
Users often report that external references (xrefs) cannot be loaded after copying the project directories to their local machine from the company’s central server.
How should you make sure that the users can load the xrefs without error?

Set the external references to use relative paths

Set the Reference Type of the xrefs to Overlay

Set the external references to use absolute paths

Set the Reference Type of the xrefs to Attachment

NO.58 One of the lines in the drawing is at a 30 degree angle. What’s the quickest way to align the X-axis of the UCS to that line?

Right-click the UCS icon, click Object, and then select an object in the drawing as the location.

Start the UCS command and enter a coordinate.

Start the UCSBASE command and set the new value

Modify the properties of the UCS icon from Properties palette.

NO.59 Which two objects support associative dimensions? (Select 2)

Images

Hatches

Polylines

Arcs

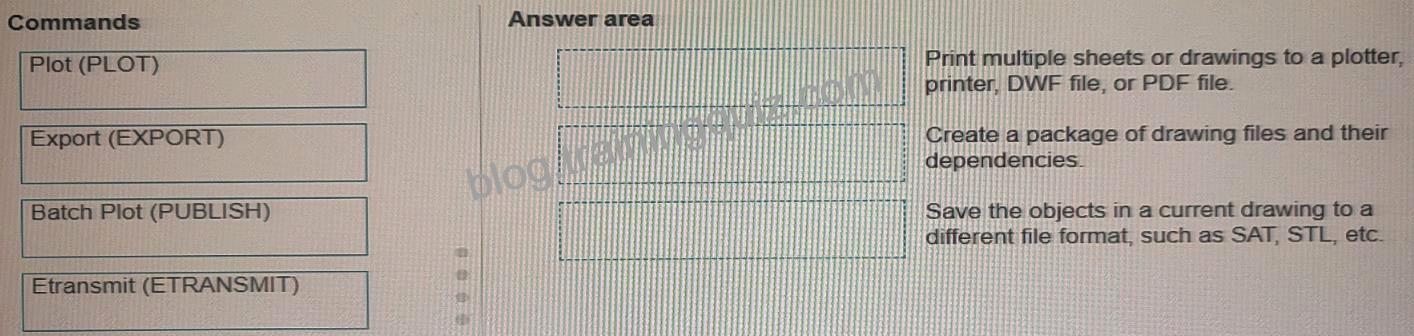

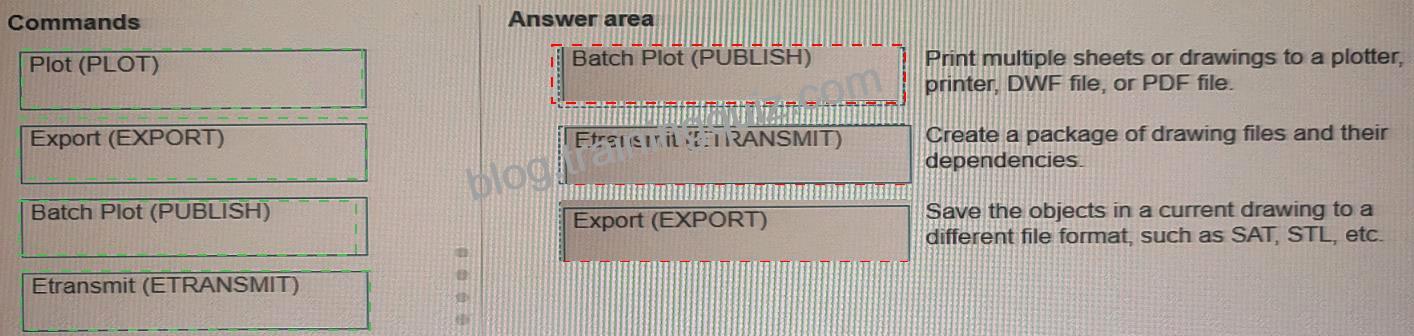

NO.60 Move three applicable commands from the list on the left to the corresponding function on the right.
Commands may be used once or not at all (Select 3)

NO.61 Refer to exhibit.

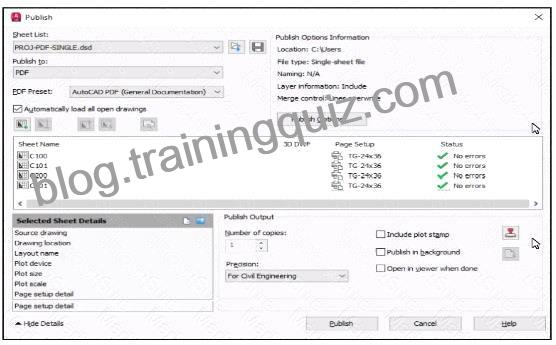

[Note: Exhibit shown is the AutoCAD interlace in Windows. While the AutoCAD for Mac version differs in appearance, the correct answers correlate in the options.] After completing markups for a portion of limit project, a CAD designer must publish new PDFs (01 sheets C200 and C201 The Sheet List (.dsd) Km the project includes all drawing sheets for the project as shown in the exhibit.
Which workflow should be used to publish PDEs for the updated sheets only?

Select the C100 and C101 sheets click the Remove Sheets (-) button and click Publish

Select the C100 and C101 sheets, change Page Setup to Do Not Plot, and click Publish

Select the C200 and C201 sheets from the list, and click Publish.

Select the C100 and C101 sheets set Number of copies to 0. and click Publish

NO.62 Refer to the exhibit.

You are working on a drawing. You copy a set of entities and exit the COPY command. You then use the MOVE command on the same set of entities.
Which default option should you use when prompted to select entities?

Spacebar

P (Previous)

L (Last)

A (All)

Autodesk ACP-01101 is an industry-recognized certification exam that validates the skills and knowledge of professionals using AutoCAD for drafting and design. Autodesk Certified Professional: AutoCAD for Drafting and Design certification is designed to ensure that professionals have the necessary expertise to use AutoCAD effectively and efficiently to produce high-quality drawings and designs.
